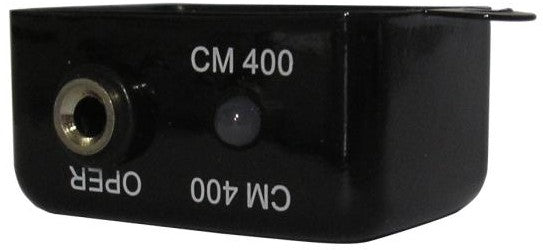

Continuous Workstation Monitors Model CM400
Instruction Manual
CM400 Installation Diagrams
- Mount monitor under bench area (use included screws or Velcro).
- Plug in the AC power supply to monitor and grounded 110v to an outlet. (monitor grounded through AC Adapter)
- Operator LED should be RED and alarm will sound 1 long
- With wrist strap worn correctly while plugged into moni- tor, LED will go from RED to GREEN when in use indi- cating grounding is functioning.
Operation
Monitoring begins when the coiled cord of the wrist strap is plugged into the monitor or remote jack. The status of a wrist strap resistance is indicated by a the bicolor LED and audible Alarm:
Stand-by indication.
If the wrist strap is removed or not being worn but is still plugged into monitor, an audible alarm will sound for 4-6 seconds, and the “OP” (operator) led will be will be blink RED.
Normal indication.
For normal operating resistance “OPER” led will be
GREEN.
High alarm.
If the operator wrist strap is plugged into the remote and resistance is higher than maximum, the “OPER” led will be RED and audible alarm will sound.
Calibration and Verification
The CM400 is factory calibrated and fixed. It does not require re-calibration. It is recommended to verify proper operation with the CM410PV verification unit available from Transforming Technologies.
Product Specifications
| Wrist strap open circuit voltage | 0.7 VDC, +0.1VDC @ < 2mA |
| Alarm indicators | Visual, audible |
| Alarm set point | 38 to 87pF (human body); with1 meg ohm wrist strap resistance |
| Unit monitoring capabilities | One person |
| Periodic Verification Units | CM410PV: NIST Calibrated Periodic verification tool for CM400 |
| Dimensions/Weight | 0.88” H x 1.75” W x 1.25” D (2.2 x 4.45 x 3.18 cm) 7.4 oz |
| Mounting | Mounting materials included |
| Power Supply | Input: 120VAC—60hz, Output: 12VDC, 200mA |
| Audible Alarm | 10 beeps (max); 5 seconds |
| Adjustment | No adjustments required |
Service and Warranty
Transforming Technologies, LLC provides a limited warranty for the Model CM400, CM410 and CM420. All new products are guaranteed to be free from defects in material and workmanship for a period of one (1) year from the date of shipment. Liability is limited to servicing (after evaluating, repairing or replacing) any product returned to Transforming Technologies. The company does not warrant damage due to misuse, neglect, alteration or accident. In no event shall Transforming Technologies be liable for collat- eral or consequential damages. To receive service under warranty, please contact Transforming Technologies.
